RA54

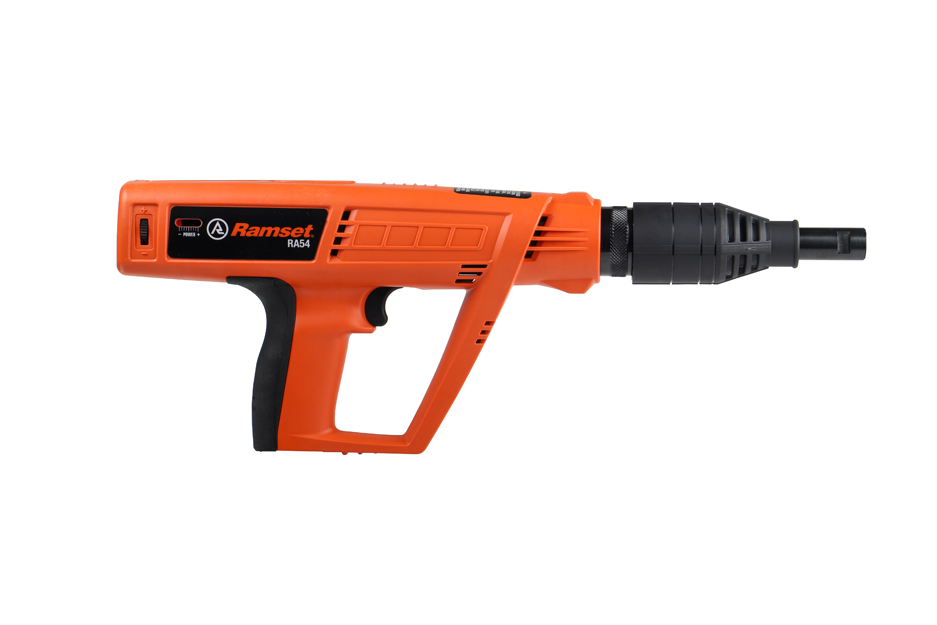

RA54 tool

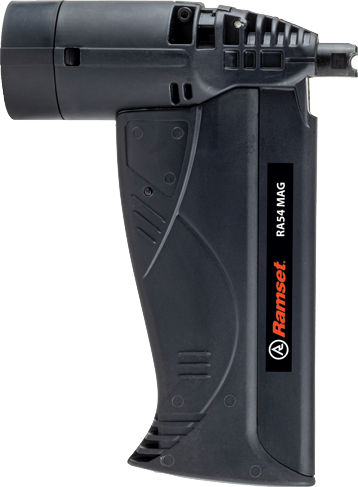

RA54-xtmag

The Most Powerful Tool We Offer!

Ramset’s most powerful tool with increased speed, less downtime and improved reliability for maximized productivity.

Exterior perimeter track Curtain wall clips RA54 in use' stadium
Attach exterior perimeter track to concrete and steel Attach Curtain Wall Clips
to Structural Steel
Track to steel

Features/Benefits

  • Improved trigger pull
  • Requires less cleaning than typical tools – less downtime
  • More power load-for-load than the prior XT540 model.
  • Ideal for hard concrete applications(purple loads)
  • Quick and intuitive to dis-/re-assemble for cleaning and piston replacement minimizing downtime
  • Ergonomically balanced
  • Works with Magnetic Muzzle (Part# 100227) & Lathing Discs

Tool Specifications

  • 27 Caliber Strip Tool
  • 3" Pin Capacity
  • 3 Year Warranty
  • .27 Caliber Strip Loads: 3 (Green), 4 (Yellow), 5 (Red), 6 (Purple)
  • Weight: 7.25 lbs.
  • Length: 19"
  • Muzzle Bushing O.D.: 7/8"

Most Common Fasteners

Pin # Shank Length (IN.) Shank Length (MM.) Most Common Application
SP58TH 5/8 15.9 Track to steel
TE114 1-1/4 31.8 Track to concrete
SP114 1-1/4 31.8 Track to concrete

Common Replacement parts - Available at ITW Service and Parts

  • 37077 Piston
  • 011483 Piston Return Spring
